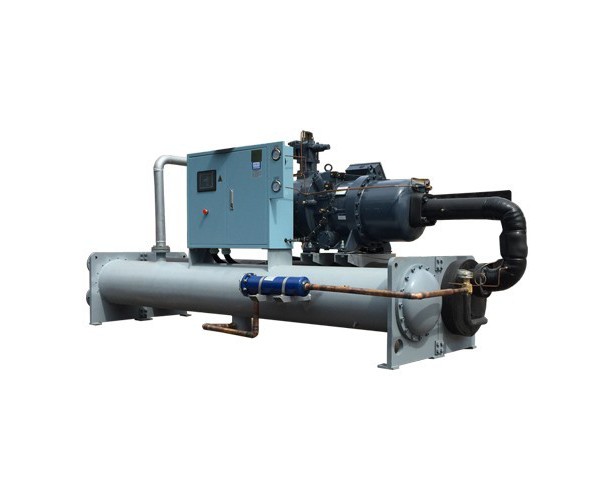

          Screw type water chiller首頁>Products>Screw type water chiller
          螺桿式冷水機
          • 產品詳情
          1. Compressor
          German semi-hermetic twin screw compressor has longer bearing life and ensures long running.
          Press built-in three-stage oil separator, long-term 10 m oil filter, lubrication effect improved significantly
          Four energy control valves can be satisfied, four stages of sectional energy regulation, 25% - 100% stepless energy regulation.
          The suction position of the special energy saver can be changed with the energy regulating valve to save more energy.
          A variety of refrigerants are available. Besides R22, environmental friendly refrigerants such as R407C are also available.

          2. Condenser and Evaporator
          Use of High Efficiency Horizontal Shell-and-Tube Heat Exchanger
          The product meets the requirement of national pressure vessel
          Imported high-quality tube sheets and threaded copper tubes are used as raw materials to greatly increase the heat transfer efficiency of refrigerant and water.
          The product flow structure is simple, heat exchange is stable, maintenance is convenient.
          The product has the advantages of beautiful appearance, small volume, large heat transfer and low failure rate.

          3. Microcomputer Controller
          The performance of embedded high-speed microprocessor is much higher than that of single-chip computer used in the same industry.
          Equipped with high stability memory, 512K program storage capacity, 128K power-off data storage capacity, stable storage data and will not lose
          The chip has compact structure, low calorific value and strong anti-interference ability.
          It has the function of timing switch, fault inquiry and fault alarm.
          Using 485 communication transmission technology, the transmission data is far away and the signal does not attenuate, up to 1200 meters.
          With multi-controller on-line control function, reserve PC computer monitoring function
          With online multilingual switching function
          Touch screen full graphical man-machine interface, providing password protection function, easy to operate


                              型號
          LC-   132WCD
          LC-   193WCD
          LC-    256WCD
          LC-    419WCD
          LC-    547WCD
          LC-    723WCD
           項目
          電源規格
          ˉ
          380V/3PH/50HZ
          制冷量
          kcal/h
          113520
          165980
          220160
          360340
          470420
          621780
          kw
          132
          193
          256
          419
          547
          723
          總功率
          kw
          31
          43
          58
          90
          115
          153
          運轉電流
          A
          52
          73
          98
          152
          194
          258
          容量控制
          %
          100-75-50-25-0
          壓縮機
          型式
          ˉ
          半封閉雙螺桿式
          起動方式
          ˉ
          分繞組
          Y-△
          油加熱器
          w
          200
          200
          200
          300
          300
          300
          冷凍油
          種類
          ˉ
          B320SH
          填充量
          kg
          9
          15
          15
          22
          28
          28
          冷媒
          種類
          ˉ
          R-22
          填充量
          kg
          21
          30
          39
          61
          78
          104
          控制方式
          ˉ
          外平衡熱力膨脹閥
          蒸發器
          型式
          ˉ
          殼管式高效換熱器
          冷凍水流量
          m3/h
          23
          33
          44
          72
          94
          124
          壓力損失
          kPa
          54
          54
          57
          59
          62
          67
          水管接口
          PT
           3″
           3″
           4″
           5″
           6″
           6″
          冷凝器
          型式
          ˉ
          殼管式高效換熱器
          冷卻水流量
          m3/h
          29
          43
          57
          94
          122
          162
          壓力損失
          kPa
          49
          51
          54
          57
          59
          62
          水管接口
          PT
           2-1/2″
           3″
           3″
           4″
           4″
           5″
          保護裝置
             高低壓力開關，防凍開關，可熔栓，壓縮機過載保護，逆缺相保護，電機過熱保護，排氣溫度過高保護，油溫過高保護，過欠壓保護，冷卻水溫度過高保護，冷凍水流量不足保護，冷卻水流量不足保護，冷卻塔風機過載保護

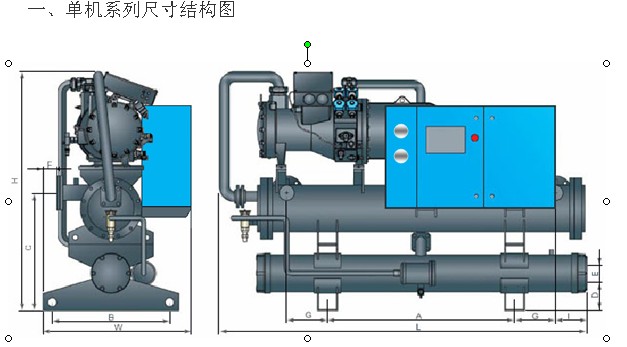

          外形尺寸
          L
          mm
          2175
          2245
          2860
          2910
          3510
          3595
          W
          mm
          935
          935
          1015
          1055
          1105
          1175
          H
          mm
          1430
          1655
          1710
          1990
          2140
          2195
          A
          mm
          1100
          1100
          1200
          1300
          1600
          1600
          B
          mm
          690
          690
          790
          790
          900
          980
          C
          mm
          690
          820
          860
          1010
          1120
          1160
          D
          mm
          170
          240
          240
          245
          275
          240
          E
          mm
          100
          120
          120
          175
          175
          240
          F
          mm
          75
          80
          105
          100
          125
          175
          G
          mm
          240
          230
          475
          405
          550
          540
          I
          mm
          75
          170
          200
          245
          250
          340
          機組凈重
          kg
          1020
          1270
          1400
          2070
          2790
          3240
          運行重量
          kg
          1120
          1420
          1580
          2340
          3120
          3760
          運行噪音
          dB(A)
          73
          78
          78
          82
          85
          85

          Remarks:
          1) Unit conversion: 1 kW cold capacity = 860 kcal/hr 1RT = 3024 kcal/hr 1kcal/hr = 3.969 BTU/hr 1 metric horsepower (HP) = 0.735 KW
          2) Parameter test conditions: inlet temperature of chilled water 12 C, outlet temperature 7 C, inlet temperature 30 C, outlet temperature 35 C, fouling coefficient 0.0001 M2 C/W
          3) R407C type environmental friendly refrigerant can be selected as refrigerant
          4) Machine voltage can be ordered according to customer's requirements.
          5) If there are other special requirements, please specify the requirements before ordering.
          6) The above parameters are subject to change without prior notice.
